We are excited to present a new release of Verge3D for Maya and Verge3D Ultimate. Version 4.2 brings a new E-learning demo, the possibility to load 3D view on demand in WooCommerce, new connector and map range puzzles, draggable 3D interfaces, and restructured settings panels in Maya.

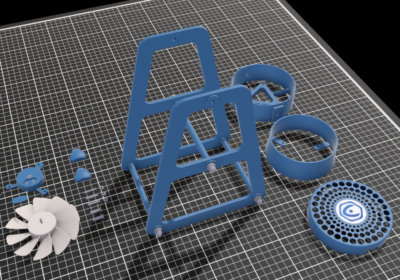

We’ve created a new demo called E-learning from which one can learn how to assemble a table fan. It features responsive mobile-friendly UI fully designed in the 3D suite, a draggable timeline, a voice over for each step, and integration with SCORM-enabled learning management systems.
We have implemented the possibility for shop visitors to load the product’s 3D view on demand. Therefore, now you can provide a mixed gallery of 2D pictures and a 3D icon to your customers. See the live example on our WordPress sandbox website.
You can enable this behavior on WooCommerce product page, in the Verge3D section, by checking Show as gallery item.
The nearby option, Switch to 3D on update, is intended to work with variable products. It basically returns the focus to the 3D view when the user switches anything in the configurator.
You can use the default thumbnail for 3D view, or add your own image in WordPress settings for your Verge3D application.
See more info on using these features in the User Manual.
The admin interface for a Verge3D application now displays the status and statistics for uploaded files to give you feedback on what’s going on.
We also made various fixes in the WordPress plugin:
- 3D embedding is now properly displayed in WordPress editor
- Verge3D apps are now properly fit in mobile screens
- Allow full screen setting can now actually be switched off
- merchant logo in plugin settings is no longer lost after re-saving the settings
Finally, we made various improvements and tweaks in the admin UI.
Maya Noise node now correctly works with WebGL 1.0.
We have further expanded the Verge3D panel which also obtained high-res icons. In addition to adding custom Verge3D objects, you can now perform Sneak Peek, Export-to-glTF, run the App Manager and invoke export settings.
We also fixed the horizontal fit for the camera which now works. Finally, the local server of the App Manager no longer spams messages in Maya console.
New puzzle–stop animate param–is available. You can use it to cancel a working animate param puzzle at any time. For usage example, see the new E-learning demo where it turns the propeller animation on and off.
Another new puzzle–connector slot–allows you to group puzzles together, so that you can do various actions with them in bulk.
It can help a lot in regard to the copy/paste function that only works with single puzzles. Connectors can also come in handy for moving puzzles around, commenting, or saving to the library. Thanks for suggesting this on the forums.
Finally, we have added the puzzle called map range. We recommend using it instead of similarly-named entry in the Puzzles Library to convert a value from one range to another. For example, you can convert the position of an object in 3D space to some factor or color to be used in a material.
We improved the puzzle get dimension. Now it returns dimensions measured in object local space and with local scaling applied, rather than in world space as it was before. This, particularly, produces better results for parented objects. The old behavior can be re-enabled using the world checkbox.
The puzzle drag move now works with parented objects (a long-awaited feature indeed). As a result, you can make draggable sliders, scrollbars and other UI elements that are parented to the camera or other objects.
Loader puzzles for sounds and videos can now be added to Lists to use them in bulk as an input to other audio/video puzzles. You can even mix sounds and videos in the same list. Also the puzzle stop sound no longer crashes with files whose playback has not started.
We now have separate Asset Stores for the preview version and the stable version of Verge3D. This is to avoid version conflicts that sometimes caused real mess with broken puzzles and demos.
If the first-launched instance of the 3D tool is closed thus putting the local server down, the App Manager will now gracefully restart it. This means you no longer need to restart it manually as before, which was quite non-obvious thing leading to much confusion among new users.
Loading of the applications list in the App Manager is no longer blocking the use of other functionality thanks to asynchronous handling of server requests.
There were various minor UI tweaks in the settings panel of the App Manager.
Creating of a new app now always copies the physics engine files to the app folder (i.e. the physics checkbox is turned on by default). However, the application will use them only if any of the physics puzzles are present, that is, only when physics is actually needed. Therefore, you no longer need to bother about enabling physics, and even if you disable the corresponding checkbox, you can always copy the physics engine files to the app folder without the need to edit the .html file as required before.
Another improvement with physics is that Verge3D now assigns bounding spheres of correct size to all physical objects.
We implemented a series of improvements and fixes for the texture compression feature to help you save video memory efficiently.
First of all, compression now skips files that would get much bigger (namely, more than 3 times) than the original image, which would otherwise damage the feasibility of this method. This often occurred with low-quality JPEGs that could generate huge files after compression. As a result, you can now have the benefits of reduced memory consumption and optimal file size at the same time.
Secondly, we supported compression for PNG textures with included ICC color profiles, which are now removed from the image (the original image is left intact). In case you really need that ICC color profile, you can disable texture compression for a particular image, or apply the color profile permanently to the texture using an image editor.
We also fixed the issue when some PNG textures were skipped from compression if any noncritical issues were detected by the exporter. For example, 16-bit images are now all compressed.
We have upgraded React and Vue.js templates to leverage the latest features of Verge3D, streamline the use of Verge3D API, and improve code readability. We also added 2 new demos to the Asset Store to demonstrate their workings. The demos, by the way, use multiple React and Vue.js components on the same page. We updated the documentation page accordingly.
We ensured that in the case when multiple Verge3D applications are embedded in the same web page, you can work with Puzzles API independently of other instances. Also the application templates–”Standard Light”, “Standard Dark”, “Blank”, and “Embeddable” for React and Vue.js–were modified accordingly.
Verge3D now gracefully restores the WebGL rendering context should it be lost. This can happen, for example, if the operating system suddenly decides to switch between discrete and integrated GPUs, or to update video drivers in the middle of presentation, or because too many/too heavy graphics apps have finally managed to overload the GPU.
You can use the following commands to check how your app performs in such situations:
We refactored Verge3D’s GLSL shaders by removing all redundant code. This should speed up loading a bit and also decrease the memory footprint. We also removed legacy code from some other parts of the engine.
The exec script puzzle now exposes Puzzles API via the
puzzles namespace which we recommend to use instead of
v3d.puzzles. This new namespace, particularly, allows you to use multiple Verge3D applications embedded in the same page, since each application now inherits its own puzzles namespace instead of using the only global one. As before, you can use it to call procedures defined in puzzles, invoke low-level physics API, etc.
This namespace is also available as the second argument in the
runCode() function found in
We implemented methods
visual_logic.js is now a module).
We refactored animation export as to improve the precision for exported Bezier and Linear animations. This helps eliminate problems in regions with abrupt changes of animated params. It can also decrease the size of exported data in some cases.
We simplified installation for unprivileged users on Windows (i.e. without admin access). Now the installer automatically chooses the home user directory to install into, instead of trying to unpack to Program Files. Thanks for bringing this up on the forums.
Also the installer window now looks better on HiDPI screens.
The feature Fit to Camera Edge has obtained a new option, Point, in its Fit Shape drop-down. If you select this option, the object will position itself relative to its center, as if it were a sizeless point. Also the Sphere option now positions objects more accurately. Finally, Fit to Camera Edge now supports multi-material objects.
The performance profile puzzle (alternatively, P-P-P hot keys) now prints about whether ambient occlusion (GTAO) is enabled for the scene or not.
The demo Load Unload now more correctly unloads scenes.
We fixed the Puzzles issue when asynchronous calls are used in loops. Thanks for reporting this on the forums.
We fixed a series of memory leaks occurred upon calling the application‘s
dispose() method, as well as in some other cases. Thanks for letting us know about this problem on the forums.
The setting HiDPI Compositing which is assigned to individual objects now correctly works with multi-material objects, such as used for 3D-modelled UI.
We corrected the error with puzzles procedures that were not accessible from other tabs after copy-pasting them. Thanks for reporting this on the forums.
We fixed the bug with mysteriously appearing “shadow” puzzles which crashed the Puzzles editor after saving. Thanks for reporting this on the forums.
We fixed 3 issues with glTF-compatible materials:
- Crashing of the export to glTF puzzle when the same texture is used for the occlusion, roughness and metallic components.
- Bug with occlusion textures vertically flipped by the export to glTF puzzle. Thanks for bringing this up on the forums.
- Crashing of materials with planar reflections, which caused objects to disappear from the rendering. Thanks for reporting this on the forums.
We fixed the bug with incorrect baking of
.png textures when exporting to
.glb format. Among other things, this fixed the engine crash when using
.hdr textures with
We fixed the puzzle clone animation, as well as the underlying API method
AnimationUtils.subclip(), which did not work properly in some cases.
We have reworked the User Manual to properly describe all Verge3D features released lately, and filled up all missed parts (such as anisotropic filtering and render settings). Notably were reworked the most popular sections such as Installation, Beginner’s Guide, Workflow, WordPress plugin, as well as pages about supported materials and the camera that specific to the 3D tools. We also supplied links to demos, and added more screenshots to better explain a described feature.
