2021-07-21 at 11:03 am #43088
thorsten moehle
Customer
Hi There
is it possible to make multiple clipping planes without having flickering or no cross-section?
I applied following:
1 plane for the Skin
1 plane for the Skeleton
1 plane for the Liver
1 plane for the Lungs
1 plane for the Blood vessels

In order to get various coloration of the cross-sections.

If i move the planes in the same plane i get a crazy flickering… or no cross-section at all.

Someone might have a tip?

Thank you very much

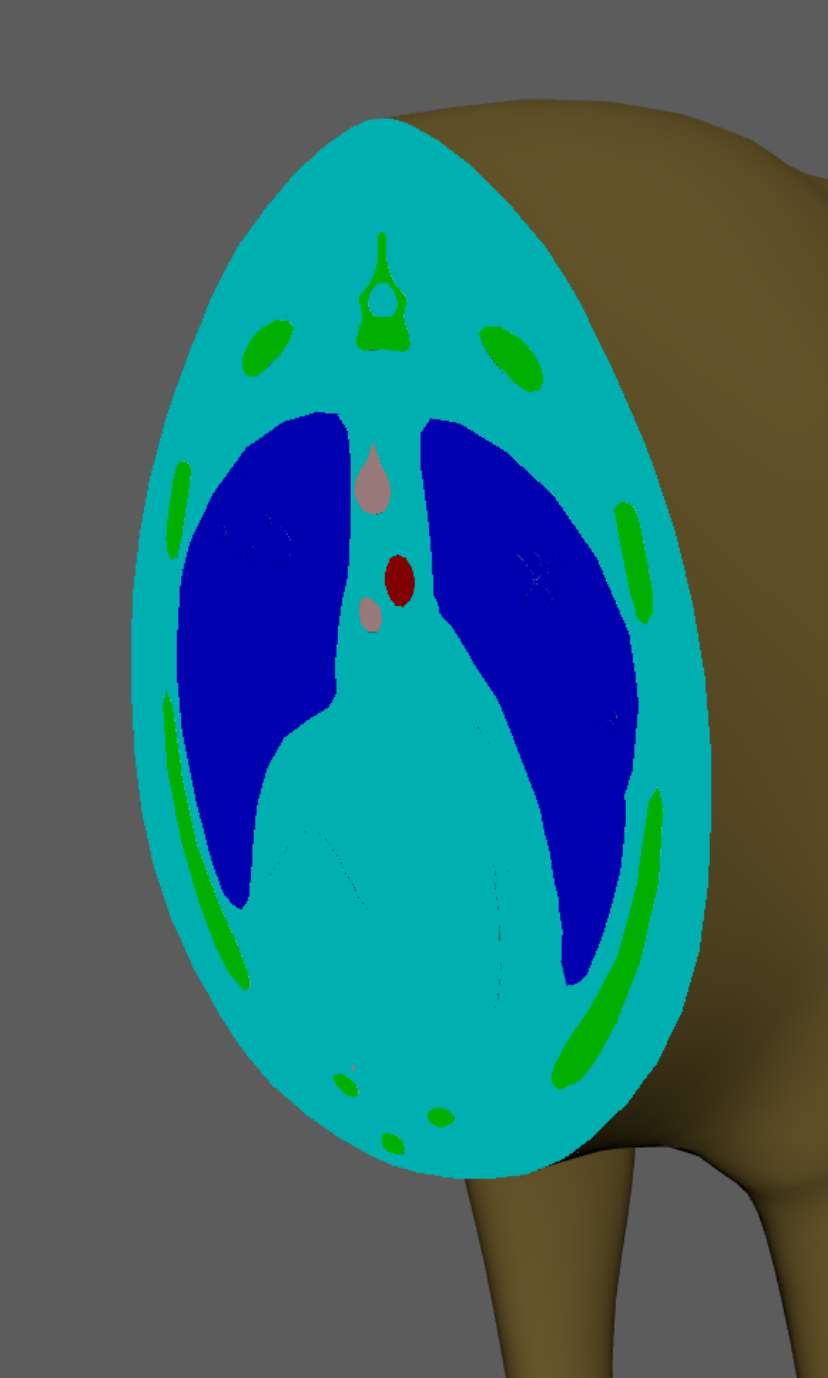

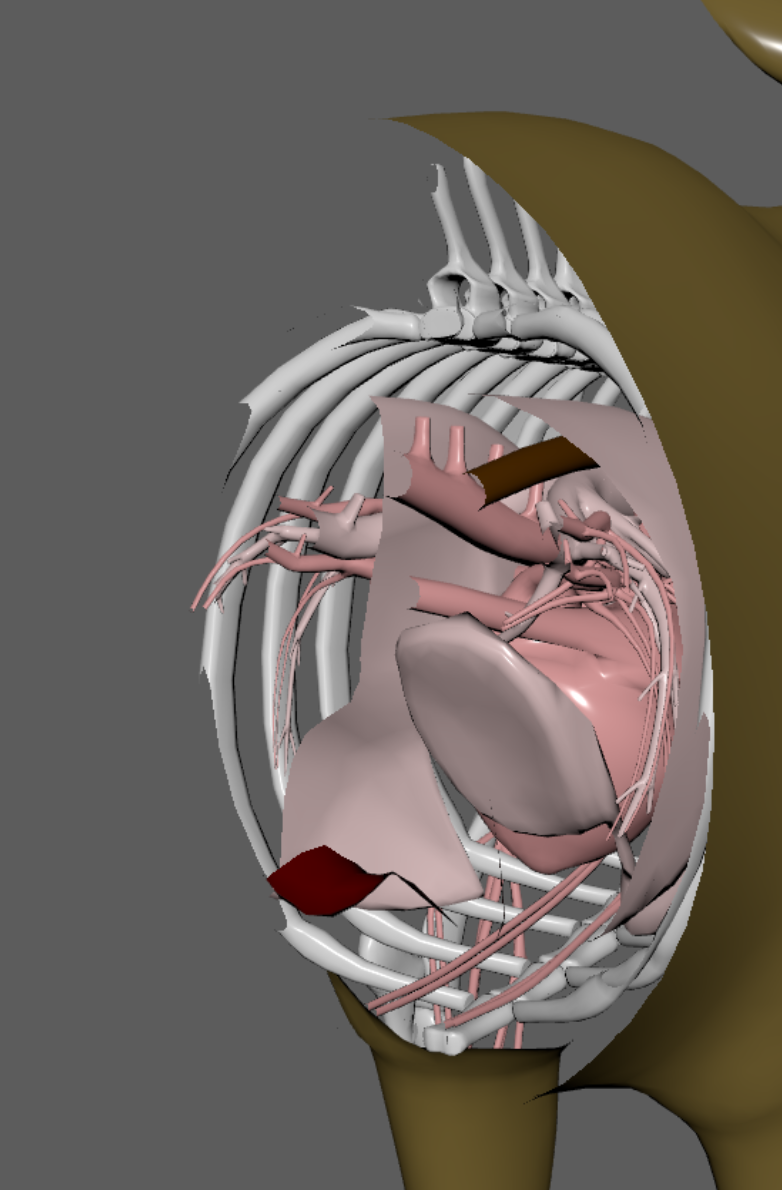

Attachments:
1. image-3.png
2. image-4.png
2021-07-24 at 12:21 pm #43162

Alexander Kovelenov
Staff

Hi,
Can you please share your file so we can have a look?

Soft8Soft Tech Chief
X | FB | LinkedIn

2021-07-27 at 5:31 pm #43273

thorsten moehle
Customer

Hi

Sure is there a way to upload bigger files?
Best regards

2021-07-28 at 10:49 am #43281

Yuri Kovelenov
Staff

thorsten moehle wrote:

Sure is there a way to upload bigger files?

you might use some file sharing service and post here a link

Chief 3D Verger | LinkedIn | X

2021-07-28 at 11:19 am #43282

thorsten moehle
Customer

Hi There

Here is the link to the files

https://wetransfer.com/downloads/c55bc49364132ccc8fa35b700912c83c20210728115059/b86a80f6cf9db144afe18ccb94a8c6bc20210728115115/77d9d2

2021-07-31 at 8:48 am #43332
Alexander Kovelenov
Staff
Hi,

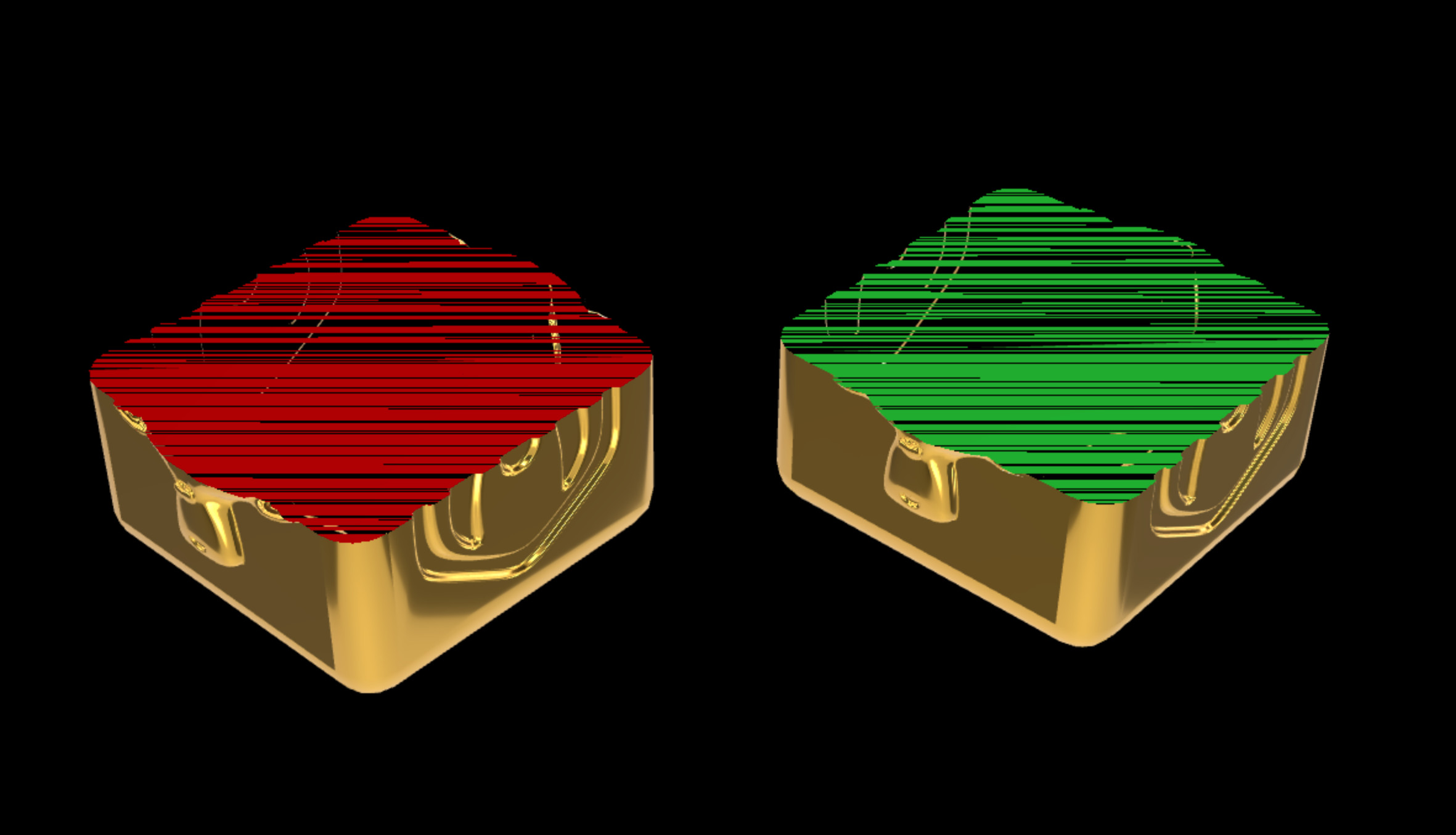

Thanks for sharing your file. Unfortunately, this setup with several clipping planes parallel to each other is not supported for the rendering method we use to visualize cross-sections:
Attachments:
1. two_parallel_clipping_planes.jpg
Soft8Soft Tech Chief
X | FB | LinkedIn
2021-08-02 at 5:34 am #43366

thorsten moehle
Customer

Hi
Thank you for checking!
Will search for a different solution
Best regards

2021-08-24 at 12:43 pm #43955

adamgraszk
Participant

did someone find a solution to this problem? i also need some colors for clipping planes

2021-08-24 at 1:13 pm #43956

thorsten moehle
Customer

Hi There
i’m still investigating…
please keep all in the loop because I’m still interested in a solution too.
:)

2022-01-29 at 10:23 pm #48876

Bignatov
Customer

Did you try to move each plane a tiny bit before the other so that they are not coplanar? Just a suggestion.
