Since I am working on industrial subjects I found that some times geometries are repeated in large quantity in scene. example – a screws or nuts/bolts. Duplicating technique saves on file size & also loading time.

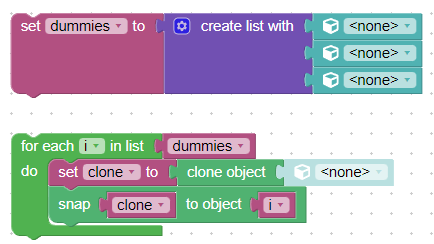

There is a typical way to duplicate them by using the “Duplicate puzzle” However it has its own limitations & is also challenging.
Can we have a facility to duplicate the object at several places at once by choosing the empty or a dummy place holder in the scene instead of duplicating by giving X,Y & Z positioning?
for instance, the way “parent to” or “snap to” object works.

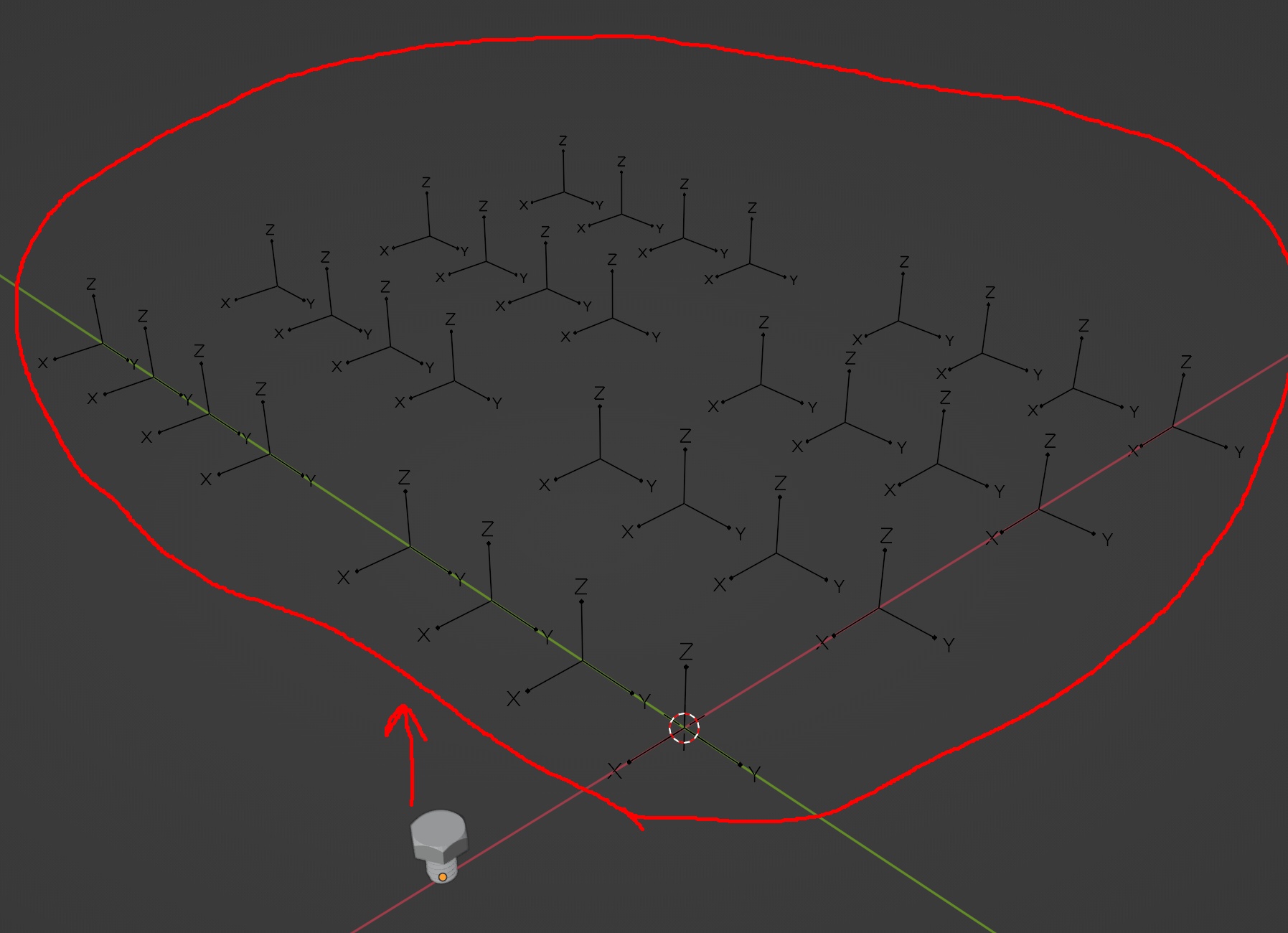

Ref image – how can I duplicate the screw at all those empties at once or quickly without playing much with longer combination of puzzles.
I’ve just described how InstancedMesh works )))
Can we have a facility to duplicate the object at several places at once by choosing the empty or a dummy place holder in the scene
You have it. But you don’t use it.
You could easily do the job this way
Duplicating technique saves on file size & also loading time.
You are free to use linked copies (Alt+D instead of Shift+D) in Blender with the same result.
Puzzles and JS. Fast and expensive.
If you don’t see the meaning in something it primarily means that you just don’t see it but not the absence of meaning at all.
Also with the help of

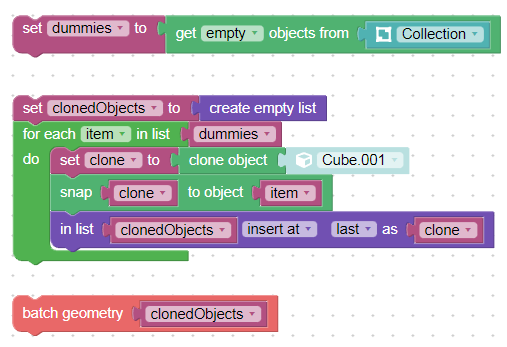

batch geometryyou can reduce draw calls count to 1 after cloning
https://v3d.net/e6pPuzzles and JS. Fast and expensive.
If you don’t see the meaning in something it primarily means that you just don’t see it but not the absence of meaning at all.
Also one more thing here,
the duplicating by creating a variable & puzzles keeps them in single constant orientation. i.e. static state. ( I guess ).This would bring completeness if future version of verge provides some feature for
1. Ability to change each clone’s orientation as per place holder’s orientation. Tilted or angular ( static ) &
2. Ability to keep dynamic synch with place holder’s position & orientation ( animated / dynamic )creating duplicated in blender by Alt+D will ultimately increase the published file size
Wrong opinion. Shift+D and Alt+D are two big differences.
One cube -> 0.92 mb
https://drive.google.com/file/d/1XL3EBiIsZzcE4FVbZ8Lvs1cSXlMZVWko/view?usp=sharing
296 linked copies (Alt+D) -> just 0.99 mb
https://drive.google.com/file/d/1lWTZfQCadazOIpXjJyHSow95Z0Fa7rkv/view?usp=sharing
296 non-linked copies (Shift+D) -> 184 mb

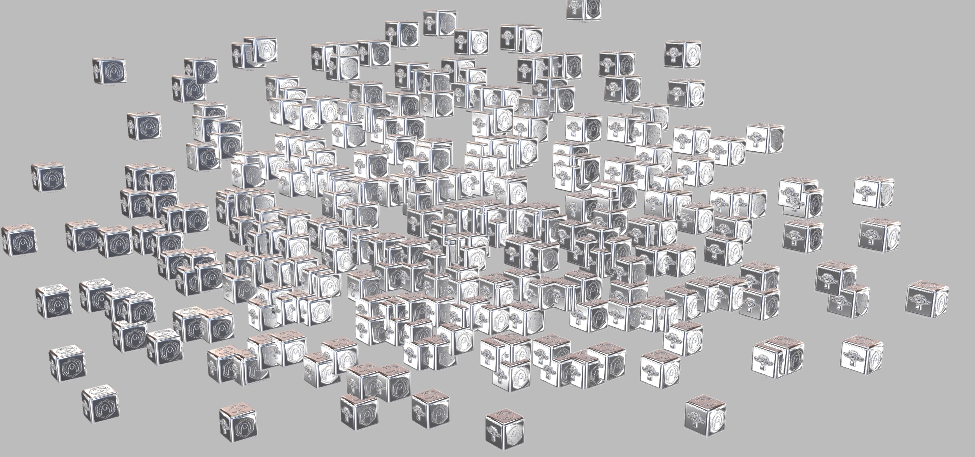

One cube with 296 empties -> the same 0.99 mbthe duplicating by creating a variable & puzzles keeps them in single constant orientation. i.e. static state.
No. Clones can be moved/rotated/scaled as any other object in the scene. If you didn’t apply
batch geometryto them after cloning.Ability to change each clone’s orientation as per place holder’s orientation
It’s already working this way https://v3d.net/e6p
Position/rotation/scale of each clone will be defined by the transforms of its place holder (applied in Blender or in Verge3D) when snapped.Ability to keep dynamic synch with place holder’s position & orientation

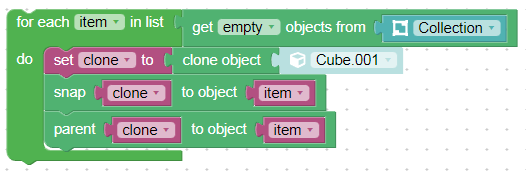

Just parent clones to their place holders after snapping.
Puzzles and JS. Fast and expensive.
If you don’t see the meaning in something it primarily means that you just don’t see it but not the absence of meaning at all.
yes ! Indeed
Alt+D really helps well & keeps file size very limited. I had a wrong assumption.
And once its Alt+D them animated clones also work well.

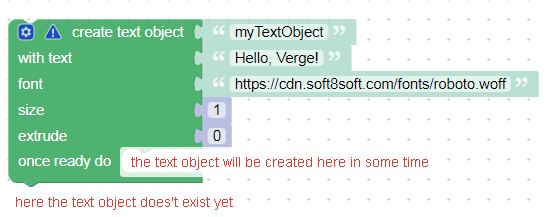

Add them to a list (array) and try to apply “batch geometry” to that list (like here). But there is one little problem: “create text object” is an async function and you need to wait for the last object to be created before geometry batching.
Puzzles and JS. Fast and expensive.
If you don’t see the meaning in something it primarily means that you just don’t see it but not the absence of meaning at all.
V3D supports exporting instances created with Geometry Nodes.
Ctrl+A -> Make Instances RealYes real instances does work perfectly.
