2018-09-23 at 7:55 pm #7610

Atomfreak
Customer

Need some advice on how I could move an object in XY but with the snap to grid effect.
I am also trying to reproduce the same effect for a rotation of the Z axis at every 90 degree. I’m also looking for how I can apply an XY snap distance.
Basically, the same effect as the snap to grid tool in 3DS max on the grid.
I tried several combinations with set positions but without success.

2018-09-24 at 8:12 am #7626

Yuri Kovelenov
Staff

Hi,

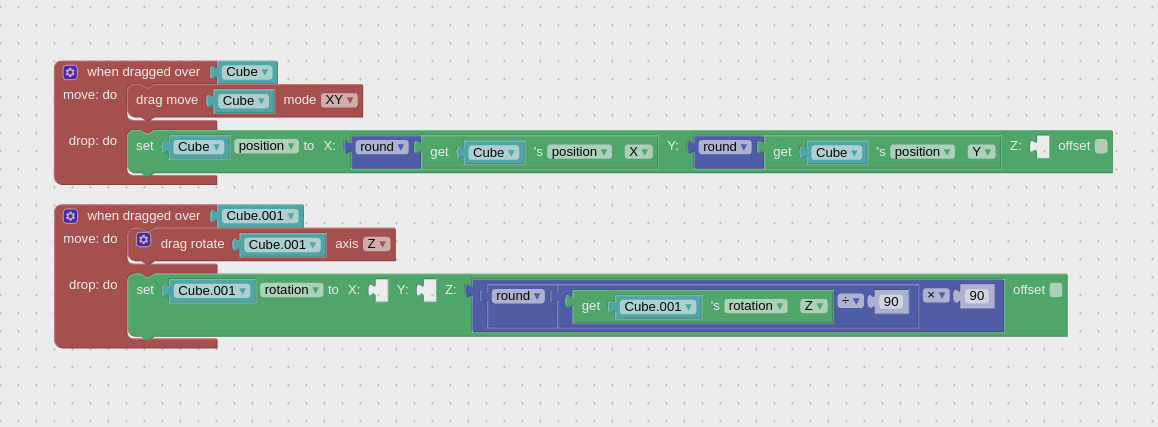

Here is how you can implement snapped dragging with Puzzles:

Attachments:
You must be logged in to view attached files.
Chief 3D Verger | LinkedIn | Twitter

2018-09-24 at 8:13 am #7628

Yuri Kovelenov
Staff

Attaching the logic save file here too:

Attachments:
You must be logged in to view attached files.
Chief 3D Verger | LinkedIn | Twitter

2018-09-25 at 12:47 am #7642

Atomfreak
Customer

Thank you very much Yuri. It helped me a lot.
Also a big thanks for taking the time to include the .xml!

2018-09-25 at 7:01 am #7646

Yuri Kovelenov
Staff

Sure, glad it worked for you.

Chief 3D Verger | LinkedIn | Twitter

2023-10-03 at 9:55 am #67265

NaxosCG
Customer

This, Yuri, was very usefull, thanks !!
What if i need to change the “grid” space : make it 2 x 2 instead of 1 x 1 ?
“round” option will always become integer, so “1×1” grid

Thanks for help.

"1+1=3... for large values of 1"

2023-10-03 at 10:09 am #67266

NaxosCG
Customer

Forget it, i’ve managed it, using the same puzzle parts used for rotation, but with “2” instead of “90”

"1+1=3... for large values of 1"
