How to make the shadows looking better

Home › Forums › Graphics / Blender › How to make the shadows looking better

Viewing 8 posts - 1 through 8 (of 8 total)
  • Author
    Posts
  • 2022-03-10 at 8:10 am #50134
    pekkizz
    Customer

    Hello! I have watched the official shadow tutorial 2 times, and followed it. I have still problems with my shadows.

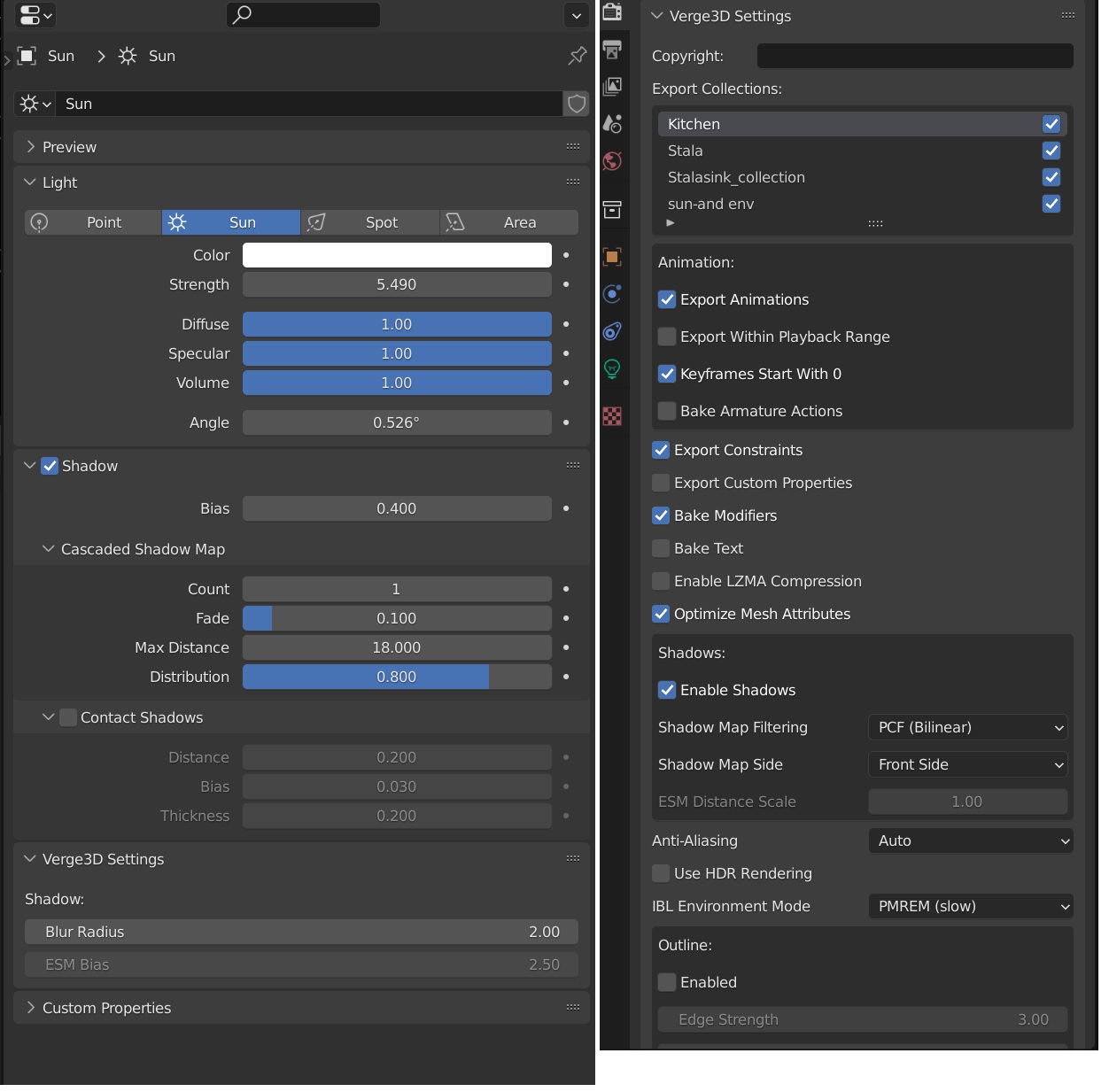

    See my light & verge3d settings in attached image please.

    Here is how my shadows look like:


    Attachments:
    You must be logged in to view attached files.
    2022-03-10 at 8:33 am #50136
    Mikhail Luzyanin
    Staff

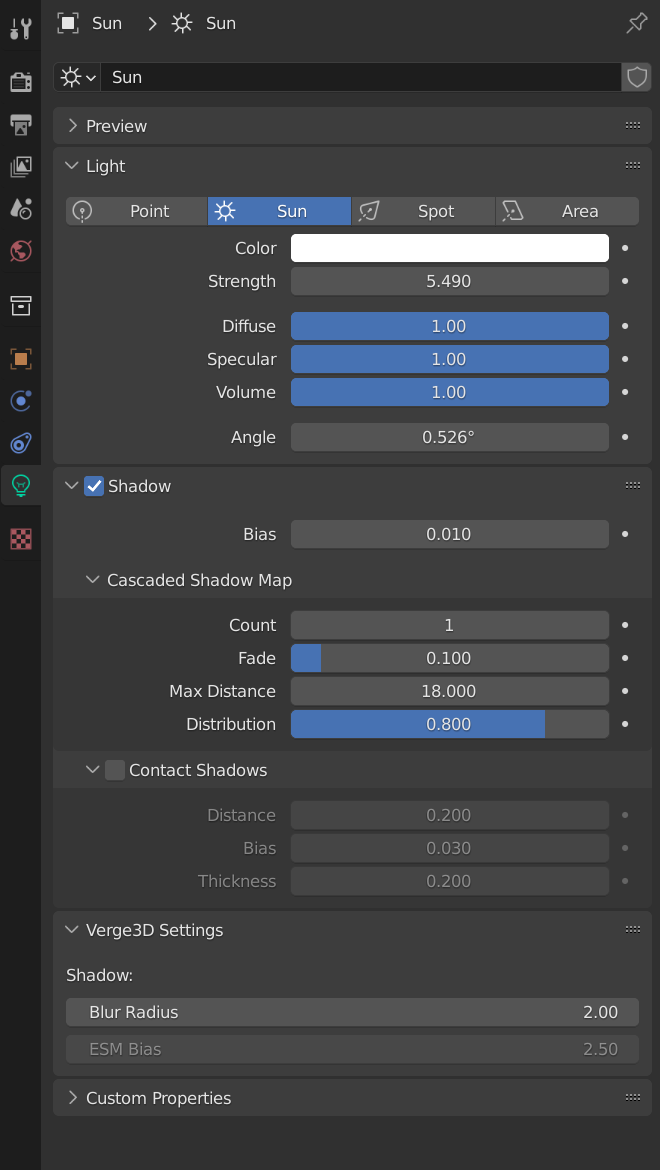

    You still need to tweak Bias. Try to decreas it to 0.01 or near.

    Co-founder and lead graphics specialist at Soft8Soft.

    2022-03-10 at 1:26 pm #50141
    pekkizz
    Customer

    Thanks, I did see the attachment.

    No help, see the video here:

    What next?

    Attachments:
    You must be logged in to view attached files.
    2022-03-10 at 1:39 pm #50144
    Mikhail Luzyanin
    Staff

    Can you attach the scene?

    Co-founder and lead graphics specialist at Soft8Soft.

    2022-03-10 at 1:43 pm #50145
    pekkizz
    Customer

    Yes, i have a zip here for you.
    https://catchline.fi/toveri/sun%20and%20env%20light.zip

    Its the folder I see when I press the “open app folder” button in Verge3D App Manager.

    Thank you so much!

    2022-03-10 at 3:45 pm #50147
    pekkizz
    Customer

    Mikhail, I really appreciate your help.
    I have now managed to make the overall light ok, but the shadow problem still exists. I have not tweaked the sun light setting, so I can use your possible solution.

    If we cannot fix the shadows on the front panels of the kitchen, then I must use some dark material that hides away those “stripes”..

    See here my overall lights, the “hero” of the scene is the stainless steel kitchen sink:

    Yours,
    Pekka

    2022-03-11 at 7:26 am #50159
    Mikhail Luzyanin
    Staff

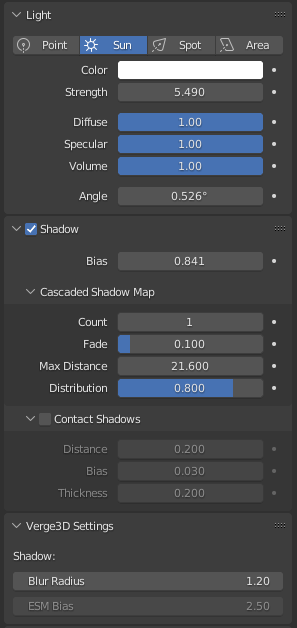

    Try to use PCF (Poisson Disk)

    increas bias to something 0.85

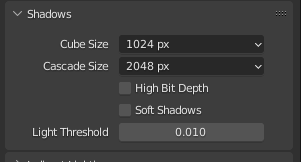

    and inctreas Cascade Shadow to 2k

    Attachments:
    You must be logged in to view attached files.

    Co-founder and lead graphics specialist at Soft8Soft.

    2022-03-11 at 8:14 am #50166
    pekkizz
    Customer

    Thank you!
    tHAT was the fix :)

    Pekka
