orbit camera collision / limits (feature request?)

Home Forums Programming orbit camera collision / limits (feature request?)

Viewing 9 posts - 1 through 9 (of 9 total)
  • Author
    Posts
  • #35565
    thomasup
    Customer

    not sure if this feature exists, but we would like to keep the orbit camera from moving inside of objects.

    so it would be a helpful feature to give it a collision material, similar to the first person camera.

    an alternative would be using the Min / Max Angles, but since they are not visible in the viewport, it is hard to set them up correctly. a viewport gizmo/overlay/handles would be appreciated here.

    #35576
    thomasup
    Customer

    made a short script, that shows the limits:

    it adds a button to the UI: currently it is creating a mesh, with the near and far limits & angle limits.
    downside: you have to undo / delete it & click the button again, every time you change a limit value.
    upside: you dont have to export to find out

    maybe this can be fleshed out & integrated into v3d natively


    # Author: Thomas Pahler @ UP Designstudio

    import bpy, bmesh, mathutils, math

    def draw():
        camera = bpy.context.active_object

        obj = bpy.context.scene.objects.get("debugCube")
        if not obj:
            mesh = bpy.data.meshes.new("debugCube")
            obj = bpy.data.objects.new(mesh.name, mesh)
            scene = bpy.context.scene
            scene.collection.objects.link(obj)
        else:
            mesh = obj.data

        verts = []
        edges = []
        faces = []

        # get camera limits
        tgt = camera.data.v3d.orbit_target
        pos = camera.location
        camDirection = pos-tgt
        near = camDirection.normalized()*camera.data.v3d.orbit_min_distance+tgt
        far  = camDirection.normalized()*camera.data.v3d.orbit_max_distance+tgt

        # add cross at target position
        def drawCross (position):
            verts.append(position-mathutils.Vector((0,1,0)))
            verts.append(position+mathutils.Vector((0,1,0)))
            verts.append(position-mathutils.Vector((1,0,0)))
            verts.append(position+mathutils.Vector((1,0,0)))
            verts.append(position-mathutils.Vector((0,0,0)))
            verts.append(position+mathutils.Vector((0,0,1)))
        drawCross(tgt)

        #add line from near to far, in camera direction
        verts.append(near)
        verts.append(far)

        #add circles
        count = 32

        #add circle for horizontal limits at near limit distance
        angle = camera.data.v3d.orbit_min_azimuth_angle
        endAngle = camera.data.v3d.orbit_max_azimuth_angle
        sweepAngle = endAngle-angle

        for i in range(count):
            angle += sweepAngle/count
            verts.append(mathutils.Vector((math.sin(angle),-math.cos(angle),0)) *camera.data.v3d.orbit_min_distance + tgt)

        #add circle for vertical limits at far limit distance
        angle = camera.data.v3d.orbit_min_polar_angle
        endAngle = camera.data.v3d.orbit_max_polar_angle
        sweepAngle = endAngle-angle

        for i in range(count):
            angle += sweepAngle/count
            verts.append(mathutils.Vector((0,-math.sin(angle),math.cos(angle))) *camera.data.v3d.orbit_max_distance + tgt)

        # make edges
        for i in range(int(len(verts)/2)):
            edges.append([i*2,i*2+1])

        mesh.from_pydata(verts, edges, faces)

        #def emptyAtPosition (name, position, direction):
        #    obj = bpy.context.scene.objects.get(name)
        #    o = bpy.data.objects.new( "empty", None )


    class DrawCameraLimits(bpy.types.Operator):
        bl_idname = "v3d.draw_camera_limits"
        bl_label = "Draw Limits"
        bl_options = {"REGISTER", "UNDO"}

        def execute(self, context):
            draw()
            return {'FINISHED'}

    def menu_func(self, context):
        self.layout.operator(DrawCameraLimits.bl_idname)

    bpy.utils.register_class(DrawCameraLimits)
    bpy.types.V3D_PT_CameraSettings.append(menu_func)

    #bpy.ops.v3d.draw_camera_limits()
    #36311
    thomasup
    Customer

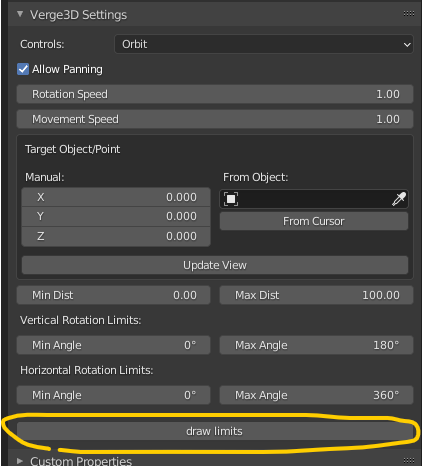

    we made an extension script, which draws the limits as a mesh.
    it is very hacky as of now, but helps iterate faster on the limits.

    a nicer implementation as overlay / tool / handle would be nice, but not sure how this is possible in blender 2.8+.

    import bpy, bmesh, mathutils, math

    def draw():
        camera = bpy.context.active_object

        obj = bpy.context.scene.objects.get("debugCube")
        if not obj:
            mesh = bpy.data.meshes.new("debugCube")
            obj = bpy.data.objects.new(mesh.name, mesh)
            scene = bpy.context.scene
            scene.collection.objects.link(obj)
        else:
            mesh = obj.data

        verts = []
        edges = []
        faces = []

        # get camera limits
        tgt = camera.data.v3d.orbit_target
        pos = camera.location
        camDirection = pos-tgt
        near = camDirection.normalized()*camera.data.v3d.orbit_min_distance+tgt
        far  = camDirection.normalized()*camera.data.v3d.orbit_max_distance+tgt

        # add cross at target position
        def drawCross (position):
            verts.append(position-mathutils.Vector((0,1,0)))
            verts.append(position+mathutils.Vector((0,1,0)))
            verts.append(position-mathutils.Vector((1,0,0)))
            verts.append(position+mathutils.Vector((1,0,0)))
            verts.append(position-mathutils.Vector((0,0,0)))
            verts.append(position+mathutils.Vector((0,0,1)))
        drawCross(tgt)

        #add line from near to far, in camera direction
        verts.append(near)
        verts.append(far)

        #add circles
        count = 32

        #add circle for horizontal limits at near limit distance
        angle = camera.data.v3d.orbit_min_azimuth_angle
        endAngle = camera.data.v3d.orbit_max_azimuth_angle
        sweepAngle = endAngle-angle

        for i in range(count):
            angle += sweepAngle/count
            verts.append(mathutils.Vector((math.sin(angle),-math.cos(angle),0)) *camera.data.v3d.orbit_min_distance + tgt)

        #add circle for vertical limits at far limit distance
        angle = camera.data.v3d.orbit_min_polar_angle
        endAngle = camera.data.v3d.orbit_max_polar_angle
        sweepAngle = endAngle-angle

        for i in range(count):
            angle += sweepAngle/count
            verts.append(mathutils.Vector((0,-math.sin(angle),math.cos(angle))) *camera.data.v3d.orbit_max_distance + tgt)

        for i in range(int(len(verts)/2)):
            edges.append([i*2,i*2+1])

        mesh.from_pydata(verts, edges, faces)

        #def emptyAtPosition (name, position, direction):
        #    obj = bpy.context.scene.objects.get(name)
        #    o = bpy.data.objects.new( "empty", None )

    class DrawCameraLimits(bpy.types.Operator):
        """draw the camera limits as a 3d object"""
        bl_idname = "object.draw_limits"
        bl_label = "draw limits"
        bl_options = {'REGISTER', 'UNDO'}

        def execute(self, context):
            draw()
            return {'FINISHED'}



    def menu_func(self, context):
        layout = self.layout
        print("test")
        layout.separator()
        layout.operator(DrawCameraLimits.bl_idname)

    classes=[ DrawCameraLimits ]

    def register():
        for c in classes:
            bpy.utils.register_class(c)

        bpy.types.V3D_PT_CameraSettings.append(menu_func)


    def unregister():
        for c in classes:
            bpy.utils.unregister_class(c)

        bpy.types.V3D_PT_CameraSettings.remove(menu_func)


    if __name__ == "__main__":
        register()
    • This reply was modified 9 months, 2 weeks ago by thomasup.
    • This reply was modified 9 months, 2 weeks ago by thomasup.
    Attachments:
    You must be logged in to view attached files.
    #36353

    awesome! thanks for sharing this! :good:

    3D Verger, the CEO
    LinkedIn | FB | Twitter | VK | 新浪微博

    #40372
    thomasup
    Customer

    since we use these limits quite a lot, i had a deeper look at it, and updated it to use gizmos.
    they are not perfect (some range visual instead of two circles would be nicer), but they help a lot speeding up the worflow to set up and change limits.

    we packed it as an installable plugin, so others can use it easily: download the .py and install via the blender preferences.

    feel free to integrate this one in a future verge3d release, if wanted.

    • This reply was modified 5 months ago by thomasup.
    Attachments:
    You must be logged in to view attached files.
    #40374
    thomasup
    Customer

    second try to add the package, maybe a zip works?

    Attachments:
    You must be logged in to view attached files.
    #40413
    dsimon_aas
    Customer

    that will be super helpful, until now what ive been doing is locking camera to view locking camera on target then setting distance constraints + angle which gives you a locked in range that you can fly around and test out and adjust but seeing will be nice

    #41051
    visualizer
    Participant

    Hi
    Thomasup

    that’s really a cool suggestion. This is something missing from verge as of now but will be cool addition for speeding up the work.

    It will bypass adjusting parameters and checking them by publishing and again readjusting & then finalize.

    #43347
    johnsmith
    Participant

    second try to add the package, maybe a zip works?

    Thanks for sharing Thomas. A short video clip showing and telling how to use this add-on would be helpful.

    Again, thanks for sharing.
