Cannot convert .dwg to .gltf/glb in 3ds Max

This topic has 9 replies, 2 voices, and was last updated 4 years, 3 months ago by Mikhail Luzyanin.

Viewing 10 posts - 1 through 10 (of 10 total)

Author

Posts
2021-03-11 at 9:21 am #39346

lorenzovonmatterhorn
Participant

I’m no CAD/3D modeling expert: I’m trying to convert this (see attachment) 3D CAD .dwg model I found on the web to .gltf/glb so I can use it.
The model shows up in 3ds Max and gets converted by Verge3D with no error but the 3D model doesn’t even show up in sneak peek feature.
Any tips on how to import/export it?

2021-03-11 at 9:27 am #39348

Mikhail Luzyanin
Staff

lorenzovonmatterhorn wrote:

The model shows up in 3ds Max and gets converted by Verge3D

What do you mean under converted by Verge3D if you say before that you can’t export it to gltf? Can you share the max file?

Co-founder and lead graphics specialist at Soft8Soft.

2021-03-11 at 9:33 am #39349

lorenzovonmatterhorn
Participant

What I mean is the conversion ends and no error is thrown but the model doesn’t appear in the sneak peek feature and in other software like Blender.
Thank you for your fast reply.
Here is the model: https://easyupload.io/nw2qqb

2021-03-11 at 10:03 am #39355
Mikhail Luzyanin
Staff
Can you reupload it, strange error.
Attachments:

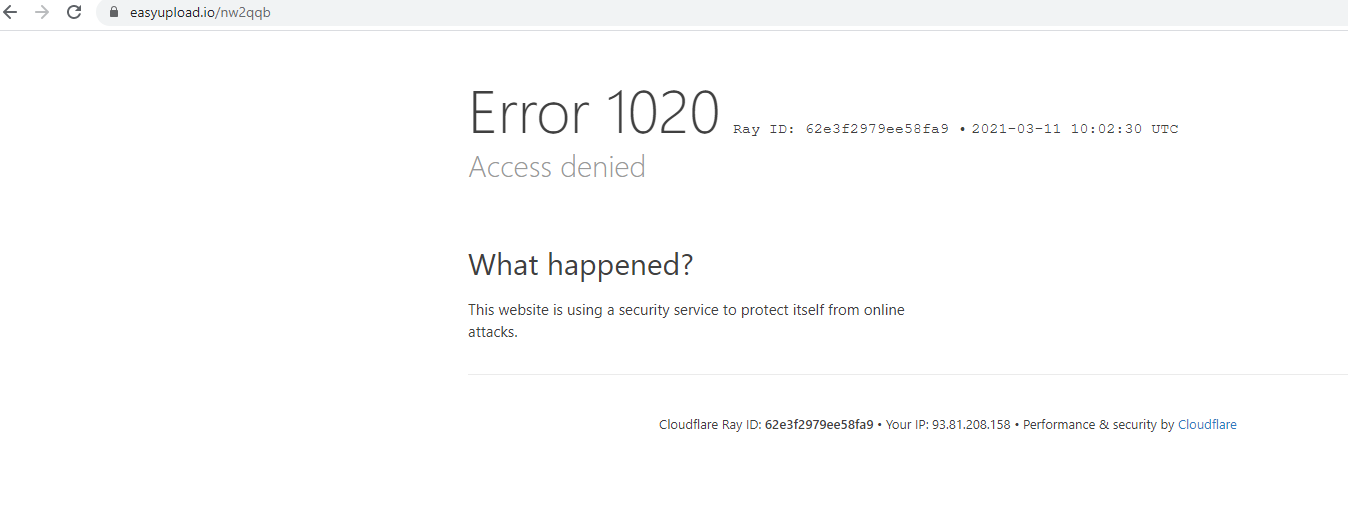

1. Screenshot_8.png
Co-founder and lead graphics specialist at Soft8Soft.
2021-03-11 at 10:07 am #39358

lorenzovonmatterhorn
Participant

Attachments dont work for me :(
https://www.file.io/download/kg2nWYr2rwLx

2021-03-11 at 10:25 am #39372
Mikhail Luzyanin
Staff
Attacmet for file less than 5 mb.
Again:
Attachments:

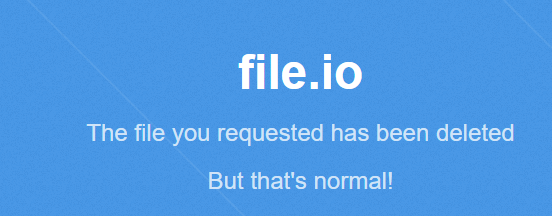

1. Screenshot_11.png
Co-founder and lead graphics specialist at Soft8Soft.
2021-03-11 at 10:33 am #39376

lorenzovonmatterhorn
Participant

Oh my God lol , sorry i think i didnt read the terms on the site

https://www.file.io/download/4FvkAQjSXTnC
https://file.io/OkoIS78fwKtA
https://file.io/4v8H6c7KLln9

Now this time it must work!

2021-03-11 at 11:14 am #39380
Mikhail Luzyanin
Staff
Ok, I get it. It happens because when you imported the object it placed somewhere far from the center of the scene, but camera look always (orbit camera type) in the center of the scene by default. So just place the object in the center of the scene after import or create a camera near the object like this:
Attachments:

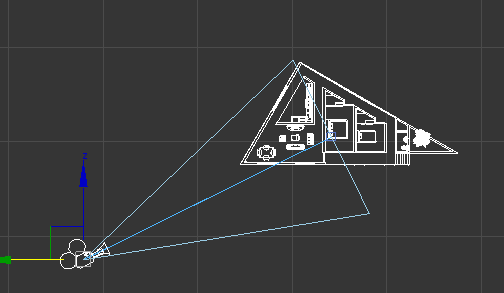

1. Screenshot_13.png
Co-founder and lead graphics specialist at Soft8Soft.
2021-03-11 at 1:16 pm #39389

lorenzovonmatterhorn
Participant

NOW IT WORKS!!!
THANK YOU SO MUCH!

2021-03-12 at 5:51 am #39408

Mikhail Luzyanin
Staff

Co-founder and lead graphics specialist at Soft8Soft.
