Shape Keys (aka Morphing) / Blender

Shape Keys (called Morphing in Verge3D) is a feature which allows you to modify mesh objects in real-time. The most common use case for this feature is creating parametric objects which can change their dimensions, shape, thickness, holes, profiles etc.

See the following demo as an example:

Setting up

Blender shape keys are exported by default. Only Relative shape keys are supported. Please notice that due to hardware constraints, the total number of active shape keys is limited to 6 (+1 base model). During rendering, the engine selects 6 shape keys with largest influences ignoring all excessive shape keys.

Animation

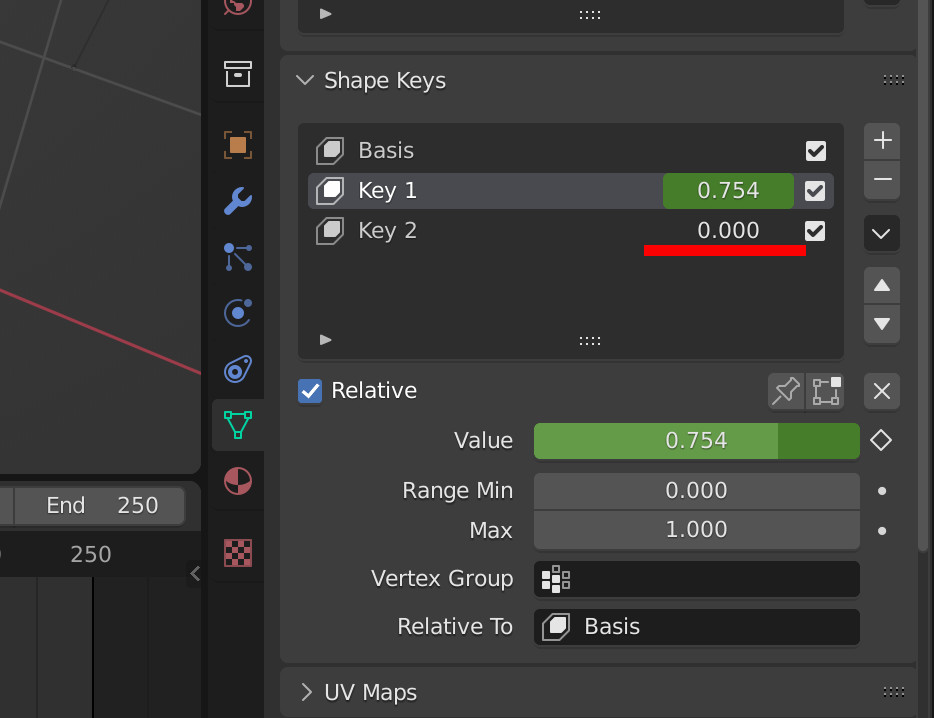

To animate shape keys in Verge3D, add keyframes for their Value parameter. The animation of shape keys works exactly the same as for any other animation parameter. You can run you playback at application start or use animation puzzles for that purpose.

Controlling via Puzzles

To manipulate your shape keys in real-time there are two puzzles: get morph factor and set morph factor.

See also

You may also check out the following video explaining how to work with parametric objects in Verge3D.
